Haivision Quad

External cellular antenna array solutions that dramatically increase reception and transmission while reducing bandwidth and latency – even with unstable network conditions.

Download Datasheet
Speak to an Expert

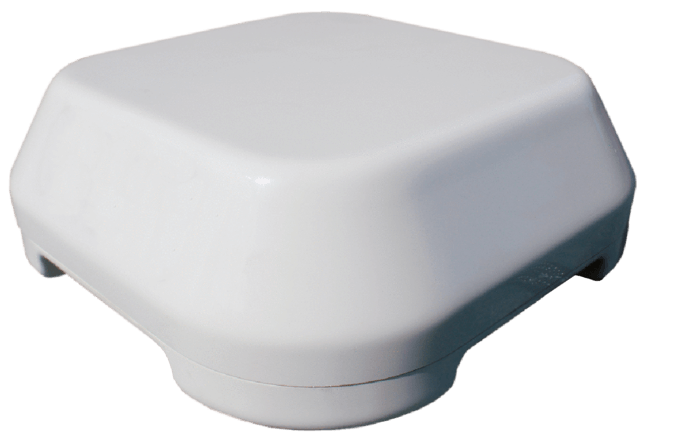

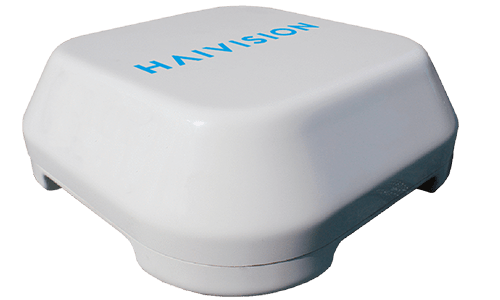

Haivision Quad - Antenna

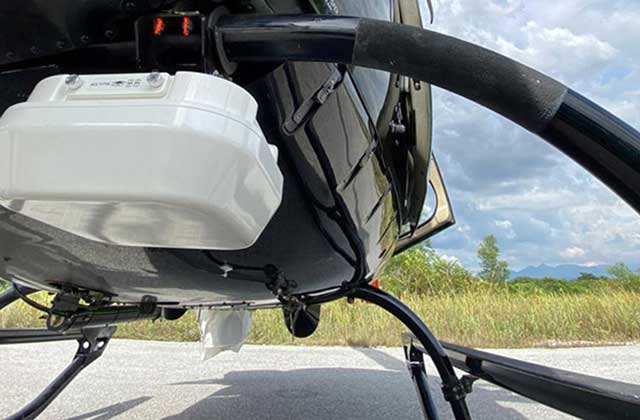

IP Connectivity Everywhere

The Quad range of external cellular antennas includes two products: the Quad Antenna and the Quad CellLink.

While the Quad Antenna is a cellular passive multi-antenna, the Quad CellLink is an active 3G/4G multi-antenna. Combined with Haivision’s mobile video encoders and transmitters, Quad solutions add, extend, and strengthen transmission capacity over bonded cellular networks.

Very High Resiliency in Extreme Conditions

Suitable for Indoor Applications

Flexible and Compact Solution

Waterproof

IP65 Waterproof Enclosure

Haivision Quad

Versatile Bonded Cellular Transmitter

The Quad Antenna is designed to extend the transmission capabilities of Haivision Pro380 and Pro340 mobile transmitters by replacing their natively embedded antennas with a ruggedized external antenna array for broadcasting from vehicles.

The Quad Antenna dramatically strengthens video transmission in areas with poor network conditions, while on the move, or in constrained environments such as crowded places.

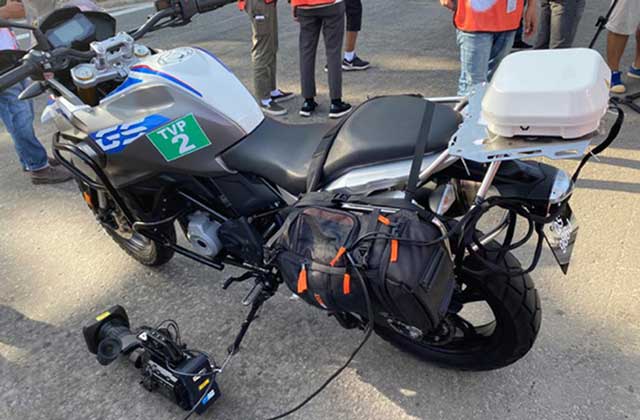

Haivision Quad - use cellink

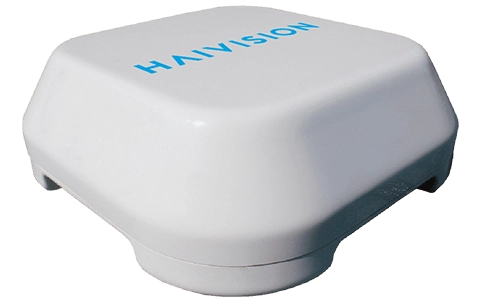

Quad CellLink

Quad CellLink, combining the Quad Antenna with four 4G-LTE/3G modems and SIM cards, is designed to enable Haivision Rack series encoders with bonded cellular capabilities or to augment wireless connectivity of Haivision Pro and Haivision Air transmitters.

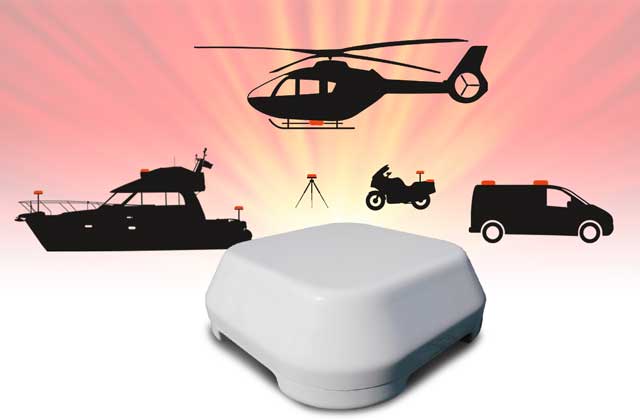

Haivision Quad use cases

Use Cases

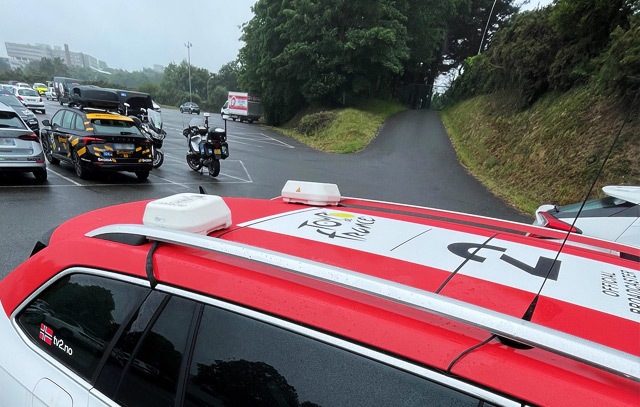

The Quad enables broadcasters to add cellular transmission and reception to their vehicle when mounted on its roof, the back of a motorbike, or a tripod. Ensure error-free transmission anywhere!

Product Specifications

Haivision Quad - Antenna

Quad CellLINK

4 Internal Universal Cellular Modems
4 High Efficiency Antennas
4 Anti-Slip Magnetic Pads
4 Extension Links
Quad

Quad Antenna

4 High Efficiency Antennas
4 Anti-Slip Magnetic Pads
Up to 9 m Cable with 4 MCX Termination

Level up your next live production with our custom rental packages.

View Rental Services

Industries

Public Safety Crime Center

Public Safety

Ensure public safety insight around the clock and react to urgent situations faster than ever before.
Broadcast Contribution

Broadcast

Haivision’s live video solutions fuel ultra-low latency, pristine-quality live sports, news, and event productions over any network.

Plan Your Project Today!

Speak to an Expert

Related Resources

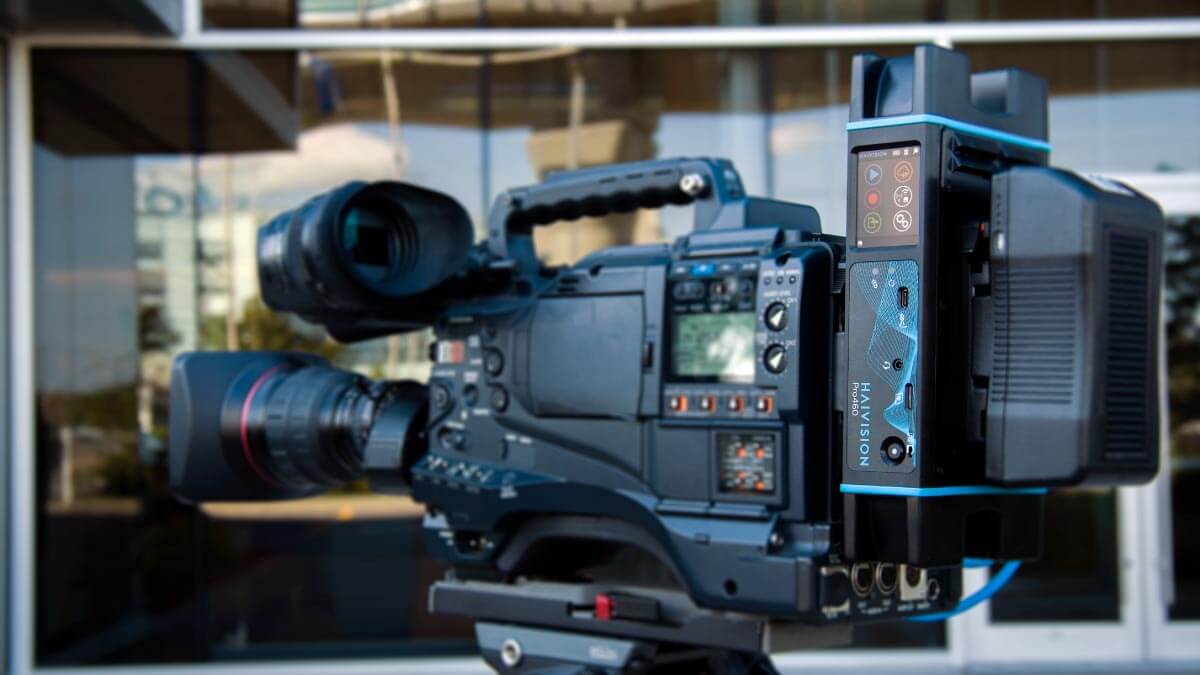

Haivision Pro Mobile Video Transmitter
